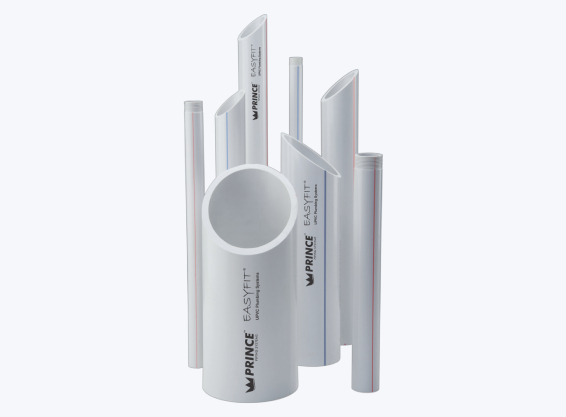

Prince Easyfit UPVC pipes are known for usage in Swimming Pools, Residential complexes specifically in kitchen. These are non-toxic and lead-free piping system used for which makes them a safe material for potable water. Prince has recently launched Easyfit Schedule 40 Plus fittings for higher pressure applications.


Easyfit
FEATURES
Proven performance for water temperature from 5°C to 60°C

Proven performance for water temperature from 5°C to 60°C

Lead-free material ensures safe drinking water

Lead-free material ensures safe drinking water

Self-extinguishing. Does not support combustion

Self-extinguishing. Does not support combustion

Fast and easy installation. Saves labour

Fast and easy installation. Saves labour

APPLICATION
Indoor and outdoor installations of cold water

Indoor and outdoor installations of cold water plumbing lines

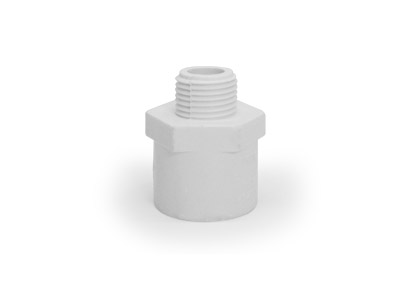

Reducing Male Threaded Adaptor - (Plain) (Sch 80)

Reducing Male Threaded Adaptor - (Plain) (Sch 80)

RO and DM water plants

RO and DM water plants

For concealed, down take & terrace looping

For concealed, down take & terrace looping

Public utilities, swimming pools & industrial applications

Public utilities, swimming pools & industrial applications

Residential complexes, commercial buildings

Residential complexes, commercial buildings

Pipes
FITTINGS
  • All

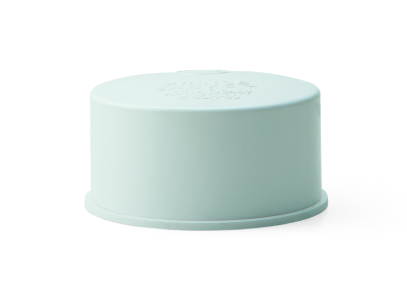

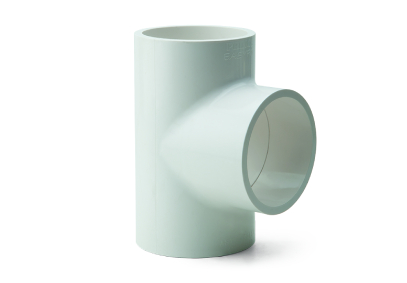

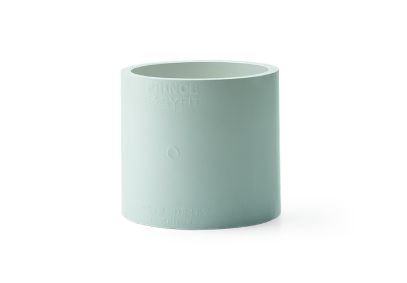

  • Moulded
  • Fabricated

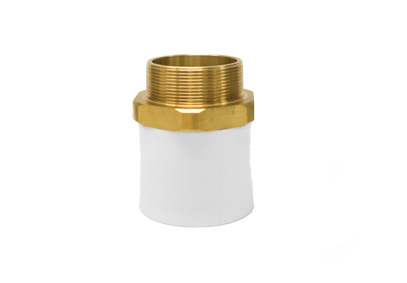

  • Brass Inserts

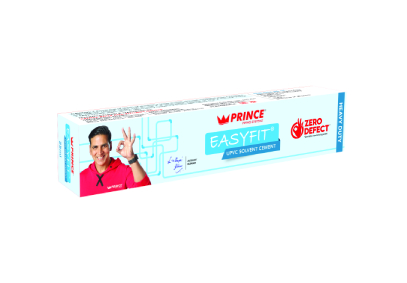

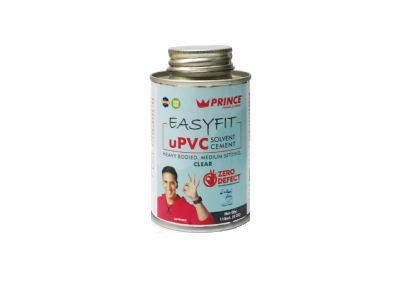

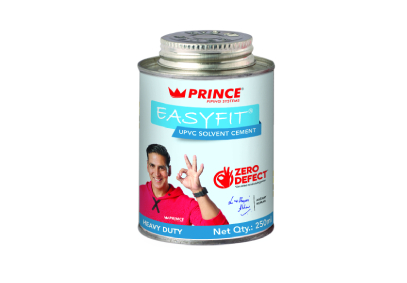

  • UPVC Solvent Cement

Cutting

It is imperative to mark the pipe from all sides so that pipe is cut with the help of a Hand Saw. It should be a right angle cut from all the sides. The cut piece should not be with burr on edges

Do not cut slant/unevenly.

Chamfering

After cutting, the pipe needs to be chamfered from the outer sides. It is advisable to provide approximately 2mm wide, 150 chamfer on spigot end

Do not proceed with installation of pipe without chamfering.

Deburring And Ridge Removal

Remove all the burrs and ridges accumulated on the inner as well as the outer edges of the pipe with the help of a deburring knife, file or abrasive paper.

Do not proceed with installation of pipe without deburring.

Dryfit Test

Before applying solvent cement, insert the pipe end into the socket of the next pipe or fitting to check that interference occurs at about 1/3 to 2/3 of the socket depth.

Do not apply solvent cement without dryfit test.

Cleaning

Thoroughly clean the pipe with dry cloth where the solvent cement is going to be applied to avoid dust, dirt, oil, moisture and other foreign material during the installation process.

Do not join the pipes without cleaning the pipe ends.

Application Of Solvent Cement

Mark the pipe length to be inserted for jointing. Apply a liberal coat of solvent cement with the help of the brush on the marked surface

Do not apply excess solvent cement on the pipe and do not use solvent cement by hand.

Jointing

Push the pipe inside the fitting/pipe so that it goes inside equally from all the sides. Wipe off excess solvent cement that comes out of the edges. Hold the joint for one to two minutes so that the jointing is perfect.

  • Do not apply excess solvent cement on the pipe.
  • Do not use a hammer or half push the pipes.

For Threaded Joints

  • Clean the Male & Female threads.

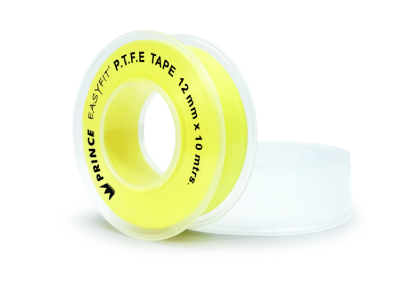

  • Apply teflon tape in the direction of thread tightening.
  • Hand-tighten the threads firmly.
  • Tighten the joint more by using pipe wrench.
  • Do not over tighten.
  • Use rubber packing to avoid scratches on pipe.

Don't over tighten with pipe wrench
